TFTP Server: Definition, Function and How It Works

TFTP Server is a network protocol that has a function to transfer file in a simple way. Find out how it works, pros and cons in networking and many implementation of it.

TFTP Definition

TFTP Server is an acronym for Trivial File Transfer Protocol. A Trivial File Transfer Protocol server is software used to implement the protocol. TFTP is a simple protocol used to transfer files from a client to a server, or from a server to a client, within a network. TFTP is often used in network environments that require simple and fast file transfers, meaning that complex interaction is not required between clients and servers.

TFTP operates on port number 69 and is a protocol provided by UDP. In terms of network security, TFTP does not provide security features in communication between networks. Therefore, this protocol is suitable for systems running on a local network.

TFTP Function

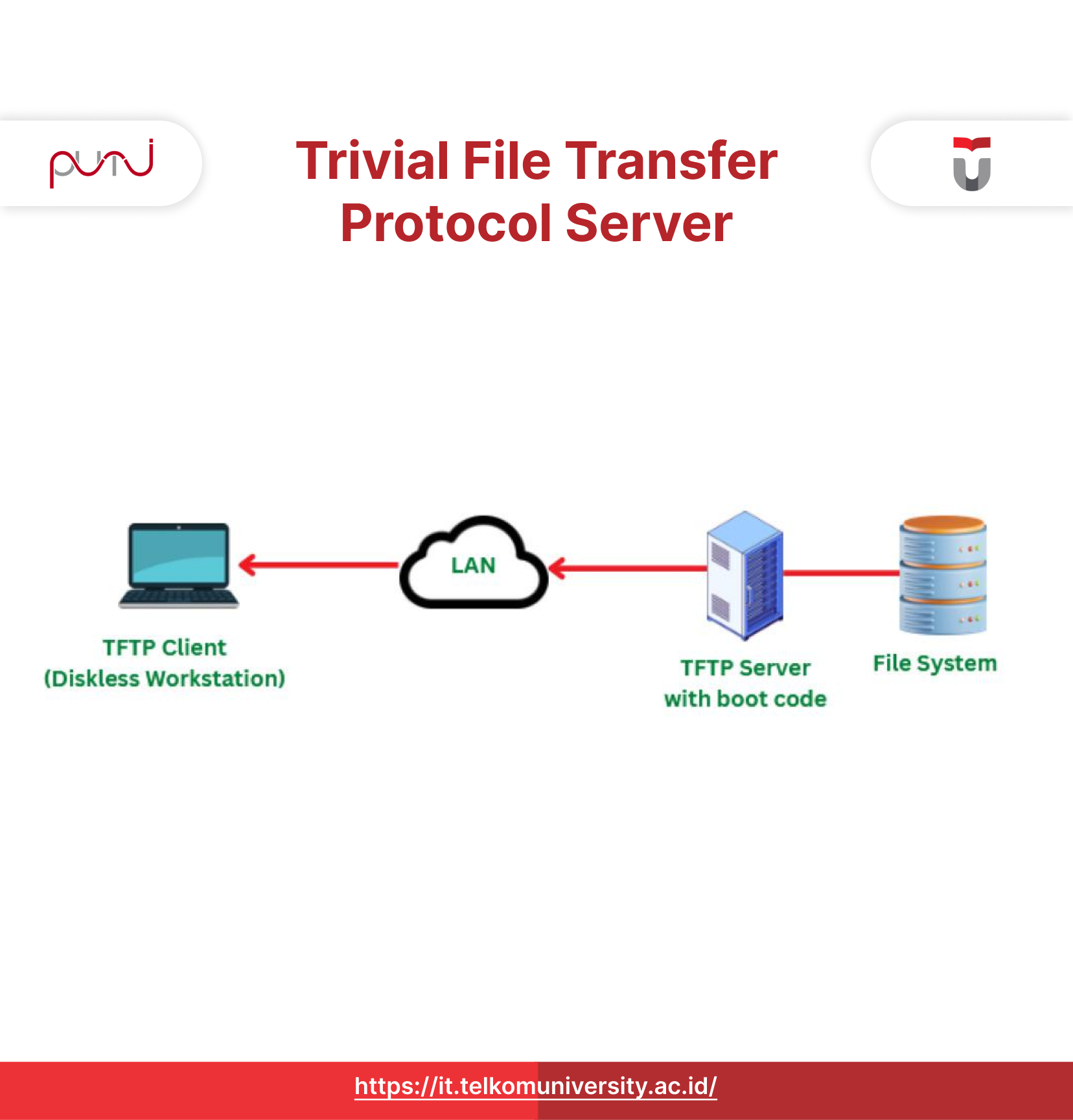

Trivial File Transfer Protocol Server Function and How It Works

The function of TFTP (Trivial File Transfer Protocol) is to facilitate simple file transfers between devices connected to a network. Here are some functions of TFTP:

Transfer Boot Files

TFTP is often used for transferring boot files to network devices such as routers, switches, or devices that require booting over the network. This boot file is used to start the operating system or software on the device.

Firmware Updates

TFTP is also used for updating the firmware or software on network devices. In many cases, network devices have the ability to download new firmware via TFTP and update existing versions.

Network Device Configuration

TFTP can be used to send and receive network device configuration files. This allows users to easily manage and change the configuration of network devices without having to manually set up each device separately.

Small File Transfers

TFTP is very effective at transferring small files such as configuration files, log files, or other small files required in network operations. The TFTP protocol is designed to transfer small files quickly and efficiently.

File Transfers in Limited Networks

TFTP can be used in networks that have resource constraints, either in terms of bandwidth or storage capacity. This protocol does not require a lot of network resources and can work well in a limited network environment.

These functions make TFTP a useful tool in network administration and management, especially in situations where simple and fast file transfer is required. However, it is important to remember that TFTP lacks a strong security mechanism and, therefore, is not suitable for transferring sensitive or confidential files.

Also Read : What is DHCP

How TFTP Server Works

TFTP (Trivial File Transfer Protocol) works using a simple, basic mechanism to transfer files between a client and a server. Here are the general steps in how TFTP works:

File Transfer Request

The TFTP client sends a file transfer request to the TFTP server. This request contains the name of the file to be downloaded or uploaded.

Opening a Connection

The client and server open separate UDP (User Datagram Protocol) connections to transfer data. UDP connections do not require a complicated session setup process like TCP (Transmission Control Protocol) connections.

Sending Read Request or Write Request Packets

TFTP clients send a Read Request packet if they want to download a file from the server or a Write Request packet if they want to upload a file to the server. These packets contain information such as the file name, transfer mode, and other options.

Responding to the Request

TFTP servers respond to client requests by sending Acknowledgment (ACK) or Error packets. If the request is accepted and the file is available, the server sends an ACK packet containing the initial block number, ready for download or upload. If an error occurs, the server sends an Error packet containing the relevant error message.

Data Transfer

Once the request is received and confirmed, data transfer begins between the client and server. The data is divided into blocks, and each block of data is transmitted in a separate packet. Once the client receives the data packet, it sends an ACK packet to confirm receipt.

Transfer Repetition

If the file size is larger than the maximum TFTP block size, the transfer will continue until all data blocks are delivered. Each data block will be numbered sequentially, and a corresponding ACK packet will be sent by the client for each received block.

Transfer Completion

After all data blocks have been transferred, the client will send a special ACK packet signaling the completion of the transfer. The server receives the ACK packet and terminates the connection.

The way TFTP works is very simple and efficient, focusing on fast and simple file transfers. However, due to its simple nature, TFTP has limitations in terms of security and additional features compared to other file transfer protocols such as FTP.

Also Read : What is NAT

Advantages and Disadvantages of TFTP

TFTP Advantages

Simplicity

TFTP is designed with simplicity in mind, which makes it easy to implement and use. Its limited feature set makes it easy to use and minimizes complexity.

Lightweight

TFTP uses the UDP (User Datagram Protocol), which is lightweight compared to the TCP (Transmission Control Protocol). This makes TFTP more efficient in terms of network resource utilization, especially in bandwidth- or latency-constrained network environments.

Fast File Transfers

Due to its simplicity, TFTP can transfer files quickly. It has no significant overhead and does not require a complicated negotiation process as in other file transfer protocols.

TFTP Disadvantages

Insecurity

TFTP does not provide built-in authentication and data encryption mechanisms. This makes file transfers via TFTP vulnerable to attacks and data theft. Information transferred via TFTP can be easily accessed and modified by unauthorized parties.

No Error Recovery

TFTP lacks a robust mechanism to detect and recover from file transfer errors. In case of transfer failure or data corruption during the transfer process, TFTP does not automatically perform retransmission or recovery, which may result in data loss.

No Folder Structure Support

TFTP has no support for folder structures or file hierarchies. This means that all files transferred via TFTP are placed in a single directory on the TFTP server. This can limit flexibility in organizing files and folders in complex network environments.

Types of TFTP Server

TFTP (Trivial File Transfer Protocol) has several popular variations or implementations. Here are some common types of TFTP:

Standard TFTP

This is a TFTP implementation that conforms to the standard specifications defined in RFC 1350. Standard TFTP has basic features such as file transfer using the UDP protocol, read and write operations, and simple file transfer capabilities.

TFTPD32

This is a popular TFTP implementation developed by Philippe Jounin. TFTPD32 is a TFTP server application designed for Windows operating systems. In addition to support for TFTP, TFTPD32 also provides DHCP, DNS, and TFTP services. This makes it a comprehensive solution for network testing or software development needs.

TFTP-hpa

This is a TFTP implementation developed by H. Peter Anvin. tftp-hpa is an open-source TFTP server that can be run on various operating systems, including Linux and Unix. It has full support for standard TFTP specifications and is often used as a reference in TFTP protocol development and testing.

SolarWinds TFTP Server

This is a TFTP server application developed by SolarWinds. It provides an easy-to-use and full-featured solution for transferring files via TFTP. SolarWinds TFTP Server can be run on Windows operating systems and supports file transfers up to 4 GB.

TFTPy

This is a Python module that provides a programming interface for implementing TFTP. TFTPy allows developers to create TFTP servers or TFTP clients in the Python programming language. This module provides flexibility in developing TFTP applications tailored to specific needs.

Each TFTP implementation may have specific additional features and functionality, but they basically follow the basic principles of the TFTP protocol. The choice of TFTP type depends on the user’s needs and preferences.

Conclusion

TVTP server is a simple protocol used to transfer files over a network. TFTP is often used for boot file transfers, firmware updates, and network device configuration. This protocol works with a simple mechanism, using UDP for fast and lightweight file transfers. However, TFTP has limitations in terms of security and error recovery. Despite this, TFTP remains a useful tool in network administration, especially for tasks that require simple and fast file transfers
