DHCP: Getting to Know The Definition, Function, and How It Works

DHCP protocol, a protocol that automates the IP (Internet Protocol) configuration process on computer networks. Learn about what DHCP is, its main functions, how it works, advantages and disadvantages. Automate network configuration with DHCP for efficient IP management.

What is DHCP

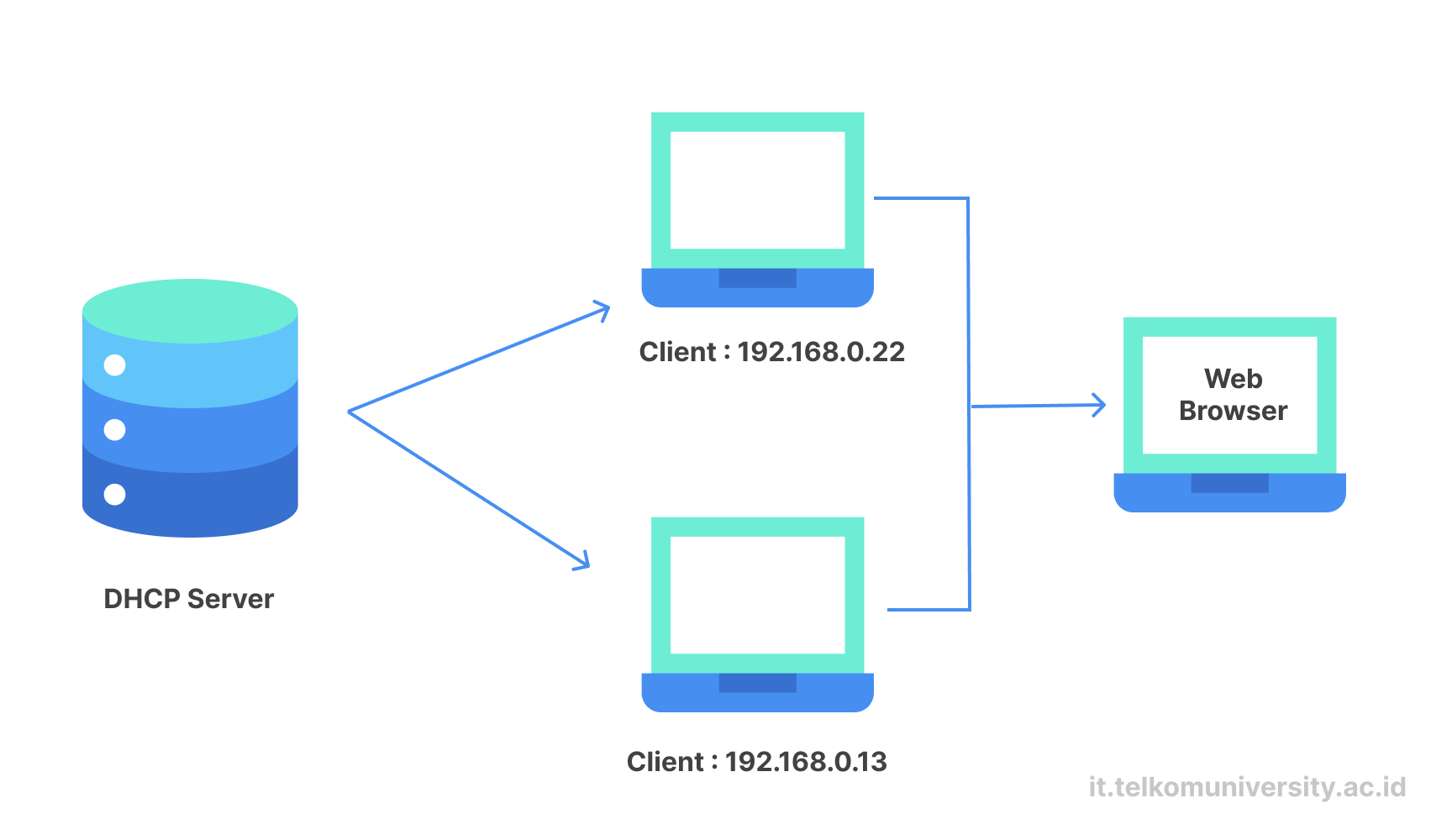

What is DHCP? DHCP stands for Dynamic Host Configuration Protocol. DHCP is a network protocol used to automate IP (Internet Protocol) configuration on computer networks, enabling devices to use services such as NTP, DNS, and UDP or TCP-based protocols. This protocol allows devices on the network to dynamically obtain IP addresses and other network settings automatically from a DHCP server.

The DHCP server dynamically assigns an IP address and other network configurations to each device, allowing the device to communicate with other IP networks. DHCP is a protocol that evolved from the earlier protocol, BOOTP.

In addition to the IP address, DHCP can also configure other information, such as the subnet mask, default gateway, DNS (Domain Name System) server addresses, and other network settings. This allows the device to automatically obtain the correct network settings without the need for manual configuration.

With DHCP, network administration becomes more efficient because there is no need to configure each device manually. DHCP also allows flexibility in allocating IP addresses, which can be used dynamically by devices on the network.

DHCP Function

The main function of DHCP (Dynamic Host Configuration Protocol) is to automate and simplify the IP (Internet Protocol) configuration process on computer networks. Here are some of the main functions of DHCP:

IP Address Provisioning

DHCP dynamically allocates IP addresses to devices connected to the network. By using DHCP, devices do not need to be configured manually, saving administrative time and effort.

Configure Network Settings

In addition to the IP address, DHCP can also configure other network settings, such as the subnet mask, default gateway, DNS (Domain Name System), and other information required for connection to the network.

IP Address Usage Management

DHCP helps manage the use of IP addresses on the network. The DHCP server controls and dynamically allocates available IP addresses to devices that need them. This ensures that there are no IP address conflicts on the network.

By using DHCP, network settings can be automated, efficient, and structured. This minimizes configuration errors and increases efficiency in computer network management.

How DHCP Works

Here is how the DHCP (Dynamic Host Configuration Protocol) Server works:

DHCP Discover Request

When a new device connects to the network, it will send a DHCP Discover request via broadcast to the entire network. This request aims to find an available DHCP server.

DHCP Offer Reply

Upon receiving a DHCP Discover request, an available DHCP server will provide a DHCP Offer reply. The DHCP Offer contains an offer of available IP addresses for the requesting device, along with other network configurations such as the subnet mask, default gateway, and DNS.

DHCP Request

After receiving the DHCP Offer reply, the device will send a DHCP Request to confirm receipt of the offer from a specific DHCP server. This request is sent unicast to the intended DHCP server.

IP Address Assignment

After receiving a DHCP Request, the DHCP server will assign the offered IP address to the requesting device. The DHCP Server will also send other network configurations to the device, such as the subnet mask, default gateway, and DNS.

DHCP Acknowledge Confirmation

After the device receives the IP address and network configuration from the DHCP server, it sends a DHCP Acknowledge confirmation to the DHCP server. This indicates that the device has received and accepted the assigned network configuration.

Renewal and Extension

As long as the device remains connected to the network, the DHCP Server periodically renews and extends the IP address lease. This ensures that devices continue to have a valid IP address and proper network configuration as long as they are connected to the network.

In addition, the DHCP Server is also responsible for managing the available IP addresses on the network, controlling IP address conflicts, and setting the IP address lease time for connected devices. By using DHCP, device network configuration can be automated, reducing human error and simplifying network administration.

4 Main Scenarios of DHCP Usage

There are four main scenarios of DHCP usage:

Client Initial Connection

At this stage, there is a request by the client to the DHCP server to obtain an IP address and other parameters used to access the network.

IP Usage Extension

The client then contacts the DHCP server to extend the usage period of the current IP address.

Client Connection After Reboot

The client contacts the DHCP Server to confirm that the IP address used before the reboot can still be used.

Client Disconnection

The client submits a request for the release of the used IP address to DHCP.

DHCP Advantages and Disadvantages

DHCP Advantages

Network Configuration Automation

The DHCP Server enables automatic configuration of IP addresses and other network settings for devices connected to the network. This reduces complicated administrative tasks and eliminates the need to configure each device manually.

Avoiding IP Address Conflicts

With DHCP, the server dynamically allocates available IP addresses to devices that need them. This reduces the risk of IP address conflicts on the network, which can cause disruption and instability.

Central Monitoring and Management

The DHCP Server provides centralized monitoring and management functions. It allows network administrators to track and manage all IP addresses used in the network, monitor IP address leasing status, and organize network settings efficiently.

DHCP Disadvantages

Dependency on Servers

The DHCP Server must be up and running at all times to provide network configuration to devices. If the server is down or malfunctioning, then devices newly connected to the network will not get an IP configuration, which may result in the inability of those devices to communicate on the network.

IP Conflict Potential

Although the DHCP Server is designed to avoid IP address conflicts by dynamically allocating available IP addresses, there is still a possibility of conflicts if there are devices using the same IP address manually. These conflicts may cause network problems such as instability or communication disruption.

Inappropriate Configuration Settings

In some cases, the configuration provided by the DHCP Server may not fully match the specific needs of a device or user. This may affect the performance or ability of the device to access certain network resources. In this case, the network configuration needs to be adjusted manually.

Types of DHCP

In general, there are several types of DHCP Servers available. Here are some common types of DHCP Servers:

Hardware-Based DHCP Server

This type of DHCP Server is integrated into specialized hardware such as routers or switches. This hardware is specifically designed to be a DHCP server and provide DHCP functions directly.

Software-Based DHCP Server

This type is a DHCP Server that runs as software on a computer operating system, such as Windows Server, Linux, or Unix. This software can be installed and configured on a physical or virtual server to provide DHCP services.

Internal DHCP Server

This type of DHCP Server is used in a particular local network (LAN) to distribute IP addresses to devices connected to the network. This DHCP Server is generally managed by an internal network administrator.

Public DHCP Server

This type of DHCP Server is provided by Internet service providers (ISPs) or larger organizations to distribute IP addresses to their customers. This DHCP Server is used to allocate unique public IP addresses to customers so that they can connect to the Internet.

DHCP Relay Agent

It is not a type of actual DHCP Server, but a device or software that serves as an intermediary between the DHCP Server and the user’s network. The DHCP Relay Agent sends DHCP requests from clients connected to the network to a DHCP Server located on a different network.

Each type of DHCP Server has slightly different features and functionality depending on the solution and network environment used. The choice of the right type of DHCP Server will depend on the needs and scale of the network.
