Router devices, which function to connect two or more different computer networks on a LAN or WAN to ensure traffic management on the network is running properly.
What is Router

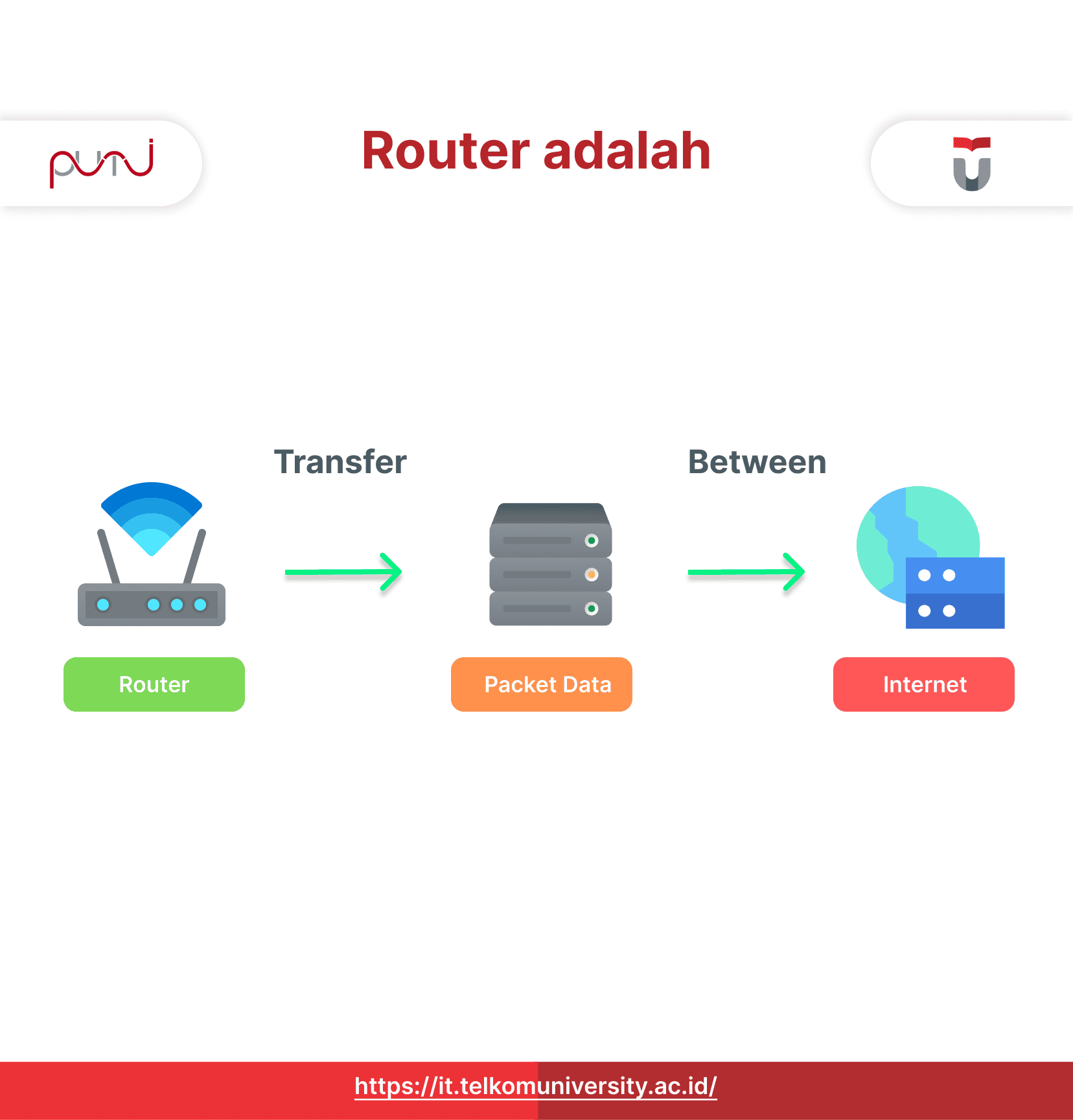

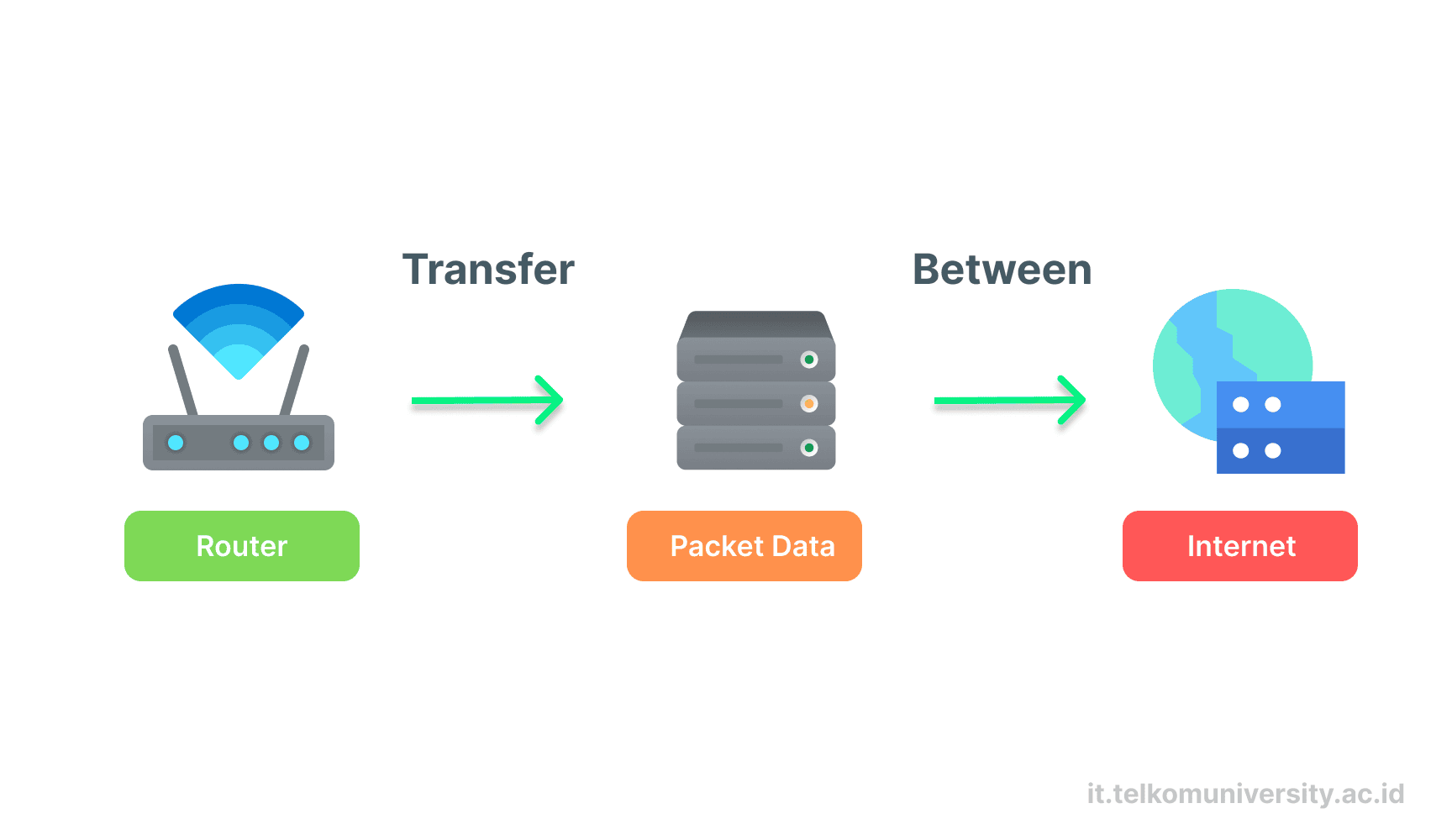

Before delving into the core discussion, it’s helpful to understand the definition of a router. So, what is a router? A router is a network device that connects two or more different computer networks, whether they are local area networks (LANs) or wide area networks (WANs). Routers operate at the network layer (Layer 3) of the OSI model. A router’s function is to manage traffic between networks by forwarding data packets to the intended IP address, thus allowing multiple devices to use the same internet connection.
A router is like an air traffic controller (ATC) guiding airplanes. In this analogy, the airplane represents a data packet, and the airport represents the destination IP address. Just as an ATC ensures a plane reaches its destination airport safely and efficiently, a router directs data packets to the correct IP address.
Routers have multiple ports for connecting to various networks. These include LAN (Local Area Network) ports for connecting to local networks and WAN (Wide Area Network) ports for connecting to wider networks like the internet. Routers process incoming data packets and forward them to the appropriate destination based on the IP address.
A single router is typically sufficient for a LAN. However, larger networks like WANs, with their wider coverage, usually require multiple routers and switches.
Routers enable communication between networks, whether within a local network or between a local network and the internet. They are crucial devices for managing data traffic flow and ensuring efficient and targeted data delivery.
Router Function
The router plays a crucial role in network data transmission. Its primary functions include:
- Connecting Networks: A router connects two or more distinct networks. Using routing tables, it directs data packets between these networks, whether local (LAN) or wide-area (WAN), such as the internet.
- Network Segmentation: Routers facilitate network division into smaller subnets. Through subnetting, administrators can manage large networks more effectively and optimize performance.
- Data Packet Redirection: Routers use routing tables to determine the optimal path for data packets to reach their destination. They analyze the destination address and available routing information to make these decisions.
- Security Implementation: Routers can act as firewalls, protecting networks from external threats. They enforce security policies, filter packets, and detect potential network vulnerabilities.
- Network Traffic Management: Routers manage network traffic using Quality of Service (QoS) techniques. QoS allows prioritization of specific traffic types, such as voice and video, which require higher quality, while assigning lower priority to less critical data.
These functions highlight the router’s importance in ensuring reliable connectivity, robust security, and optimal network performance. Routers can be configured and customized to meet specific network requirements.
How Routers Work
The router’s operation involves these steps:
- Packet Reception: Upon receiving a data packet, the router examines the destination IP address to determine if the packet is destined for the local network or another network.
- Routing Table Lookup: The router consults its pre-configured routing table to identify the best path for the packet. This table contains information about directly connected networks and known routes to other networks.
- Path Determination: Using routing algorithms, the router selects the optimal path based on the routing table information. Factors considered include distance, traffic load, path quality, and predefined routing policies.
- Packet Switching: Once the best path is determined, the router forwards the packet to the appropriate interface. The packet’s destination IP address may be modified based on the outgoing interface.
- Packet Transmission: The router sends the packet through the chosen interface toward the destination network. The packet may traverse multiple routers before reaching its final destination.
- Process Repetition: This process repeats for each received data packet. Each packet is analyzed, routed, and delivered based on the dynamically updated routing table.
Routers often incorporate additional features like Network Address Translation (NAT) for IP address translation between local and public networks, firewalls for security, and protocols like ICMP (Internet Control Message Protocol) for control messages and error detection.
Router configuration and operation can vary depending on the router type, model, and specific network policies.
Modem vs. Router
While often confused, modems and routers serve distinct purposes.
- Modem: A modem (modulator-demodulator) connects a home or office network to an Internet Service Provider (ISP), enabling internet access. It acts as a bridge between the local network and the ISP.
- Router: A router manages data traffic between devices within a Local Area Network (LAN) and/or between a LAN and a WAN. It ensures data reaches the correct destination.
Here’s a comparison:
| Feature | Modem | Router |
|---|---|---|
| Function | Connects to ISP for internet access | Connects networks, manages traffic, provides network segmentation and security |
| Connection | Typically one connection to ISP, one to router/computer | Multiple connections (ports) for devices (wired or wireless) |
| IP Address | Receives a public IP address from the ISP | Assigns private IP addresses to devices on the LAN (DHCP server) |
Router Pros and Cons
Pros:
- Efficient Packet Switching: Routers optimize data packet delivery by selecting the best path.
- Flexible Network Configuration: Routers support various network connections (LAN and WAN), offering design flexibility.
- Network Security: Routers can implement firewall functionality for network protection.
Cons:
- Price: Advanced routers can be expensive, especially for larger networks.
- Complex Configurations: Initial setup can be complex, requiring networking knowledge.
- Vulnerability to Attacks: Routers can be vulnerable if not properly configured and updated.
Types of Routers
Several router types exist:
- Wired Routers: Connect devices via Ethernet cables.
- Wireless Routers: Enable wireless connectivity via Wi-Fi.
- Core Routers: Located at the network core, managing traffic between different networks.
- Edge Routers: Situated at network boundaries, connecting local networks to external networks.
- Modular Routers: Feature add-on modules for expanded functionality.
- Virtual Routers: Run on shared hardware, providing logical network segmentation.
Router types vary based on specific needs and network context. Some routers may combine features from multiple categories.
Conclusion
A router is a crucial network device connecting two or more networks (LAN or WAN). Operating at the network layer (Layer 3 of the OSI model), it manages traffic by forwarding data packets to the correct IP address. Routers use routing tables to determine optimal paths and have multiple ports for connecting to various networks. They play a vital role in modern networking.
Discover in-depth knowledge of routers and network technology at the Best Private University. Enroll now and become a reliable network expert!
Reference
https://www.cloudflare.com/learning/network-layer/what-is-a-router/
